Wall panels

wall panels added

JA6_0657

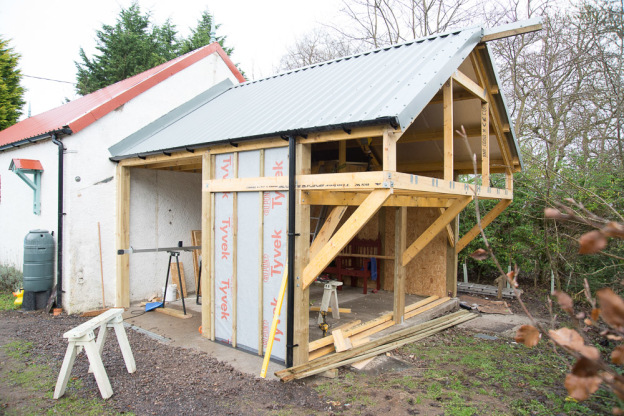

Tiny Barn prototype panel construction. The west elevation will have the cladding inset to show the framing details.

JA6_0674

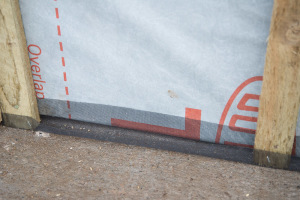

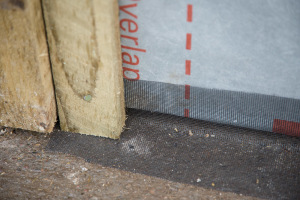

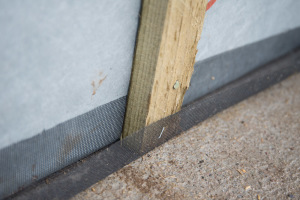

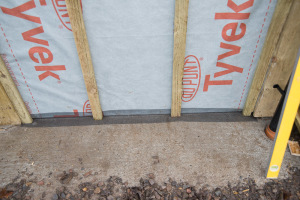

The rain screen, fly screen bottom vent construction detail, all ready for the shiplap cladding

JA6_0672 JA6_0673 JA6_0681JA6_0679

The rear elevation is being fully clad and although this hides the framing detail it is actually the hidden side of the building.

JA6_0676

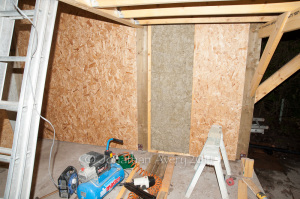

insulated panel 100mm cavity filled with rockwool

insulated panel 100mm cavity filled with rockwool

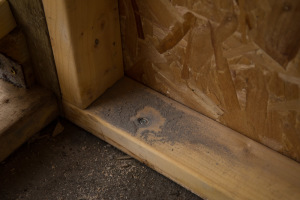

JA6_0677
